CẢM BIẾN ĐO RUNG TR-I-CEMB/ CEMB VIETNAM
-
- Thông Tin Sản Phẩm
- Đánh Giá

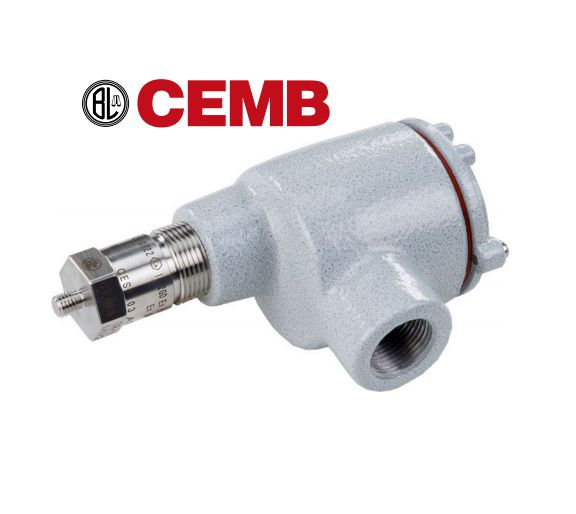

Vibration transmitter TR-I CEMB
The integrated transmitter TR-I measures the absolute vibrations of any rotating machine support and it is able to interface directly in 2 wires technique (current loop 4 ÷ 20 mA) to an acquisition system. It is made in Explosion proof version for application in aggressive environment
The transmitter, secured directly on machinery, generates an electric signal (4÷20mA) which is proportional to vibration velocity or acceleration. The transmitter is made of a stainless steel body AISI 316L with machine connection thread and it is supplied with a die-casted aluminium case for the terminal board with ¾” NPT female thread.
THÔNG SỐ KỸ THUẬT : transmitter TR-I
| Composition | AISI 316L stainless steel body |
| Die-casted aluminium explosion case | |
| Power supply | 24 Vdc (10 ÷ 35 Vdc) current loop 4 ÷ 20 mA (2 wires) |
| External connections | Terminal board |
| Environmental use field | - 40°C ÷ + 70°C |
| IP65 | |
| Measure type | Omnidirectional seismic (absolute vibration) |
| Dynamic field | ± 18 g |
| Transverse sensitivity | < 5 % |
| Linearity | ± 2% - 75 Hz |
| Dynamic performances | ±3% / 10Hz-1kHz |
| -3db / 1Hz – 2kHz | |
| Insulation | ≥108 Ω between signal and container |
| Application axis | Any |
| Standard machine connection thread | M8x1,25 |
| ¼”-18NPT | |
| Maintenance | No maintenance is needed |
| Parameters to be defined when ordering | Measuring field |
| Mounting torque | Machine connection thread |
| Certification | 5÷10 N-m |
| Ex II 2GD Ex d IIC T6 Gb Ex tb IIIC T85°C Db |
